Heavy duty expanded mesh machine ABE-6-2500

Description:
The expanded metal mesh machine is used produce the expanded metal mesh, also is called expaned metal lath, can be used in construction, hardware, door and windows and lathes. Some products with surfacing processed can be wildly used in decoration of the building or house.
The machine is in high speed with satisfied expanded mesh. The shearing force of the expander is related to the thickness of the materials as well as the LWD. Considering the same thickness of the raw materials, the shearing force will increase with the decreased LWD.

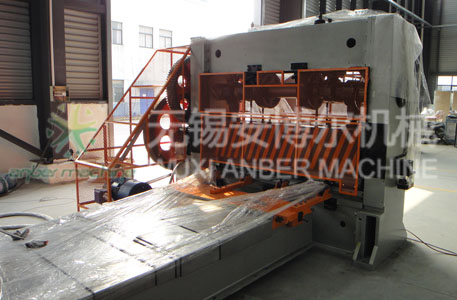

  • Side view of the metal expander when the mesh out of the machine

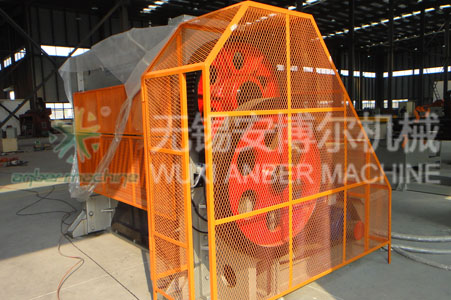

  • Mesh out of the metal expander

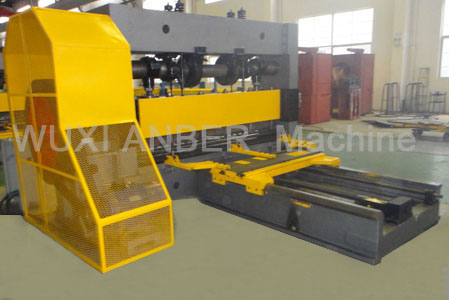

  • Mesh put of the metal expander

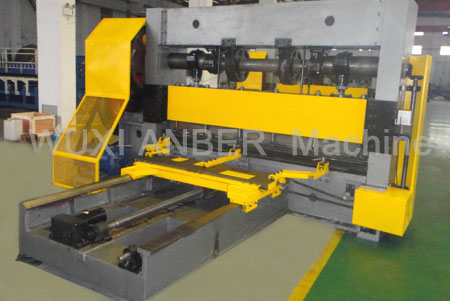

  • Expanded metal mesh machine

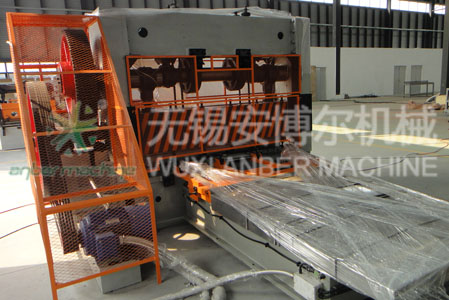

  • Mesh put of the metal expander

Main technical parameters:

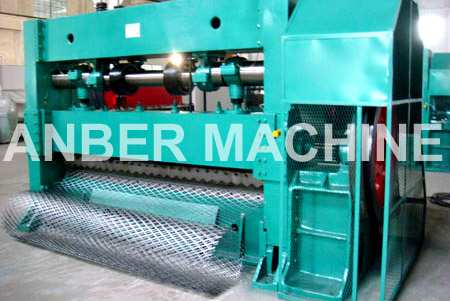

Model: ABE-6-2500
Range of the thickness: 0.5-6mm
Cutting width: 2500mm
Working speed: 40 strokes per minute
LWD: 200mm
SWD: 10- 120mm
Punching force: 160T
Motor power: 22kw
Feeding distance: 0-8mm
Net weight: 18T
Overall size: 5500mm*3300mm*1750mm
