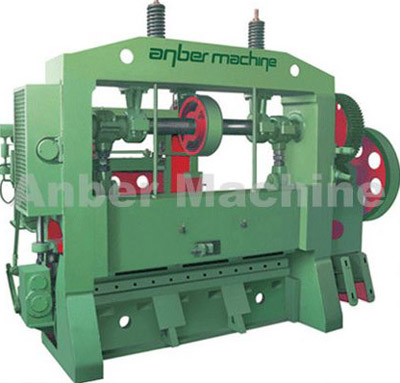

Expanded metal mesh machine ABE-2-1500

The expanded metal mesh machine is used produce the expanded metal mesh, also is called expaned metal lath, can be used in construction, hardware, door and windows and lathes. Some products with surfacing processed can be wildly used in decoration of the building or house.
The machine is in high speed with satisfied expanded mesh. The shearing force of the expander is related to the thickness of the materials as well as the LWD. Considering the same thickness of the raw materials, the shearing force will increase with the decreased LWD.

Model: ABE-2-1500
Range of the thickness: max. 2mm
Cutting width: 1500mm
SWD: 12-40mm
LWD: 25-80mm
Working speed: 120 strokes per minute
Feeding distance: 0-2.5mm
Motor power: 11kw
Net weight: 6T
Overall size: 2870mm*990mm*2140mm
Application: Medium and Standard Filters
                    Decorative Purposes
                    Ventilator Grilles
