Angle bead production line

Description:
Angle bead production line is used to produce the angle bead which is mainly used to protect the angle of the wall.

Layout of angle bead production line:


Parameter:

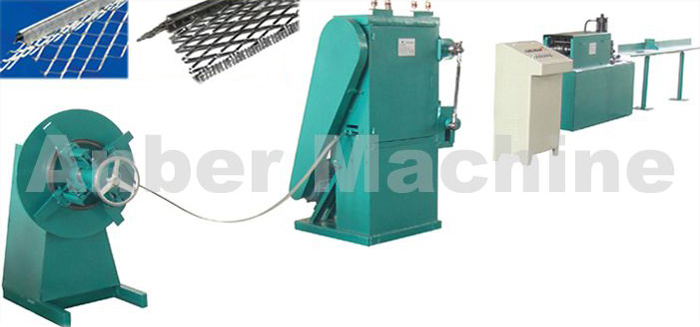

Seen on the picture, the “V” type angle bead production line consists of five parts: uncoiler, angle bead machine, electric control cabinet, roller profiling machine and collecting table.

•

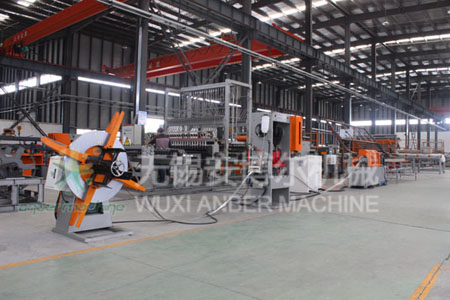

  Angle bead expanding machine

•

  Angle bead production line

•

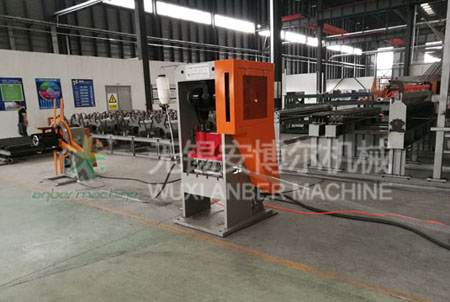

  Corner bead making machine

•

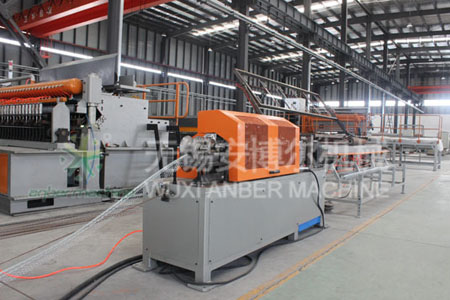

  Expanded angle bead machine

•

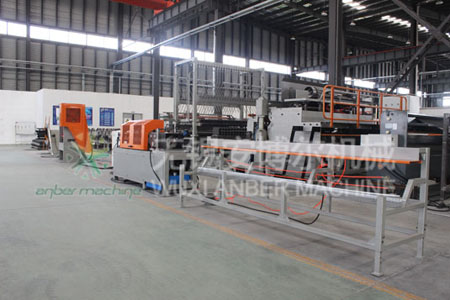

  Corner bead production line

•

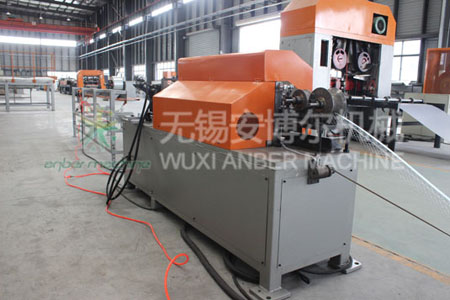

  Angle bead production line

•
•
•
•
•
•

Maximum inner diameter: 480mm, can be adjustable
Loading weight: 1000Kgs
Max. strip width: 150mm
Motor: 1.5kw
Expanding motor power: 4kw
Punching press: 15Tons
Roll profiling motor power: 4kw
Mesh opening size: 25*10mm, according to the draw
Flange size: 50*50mm, according to the draw
Strand width: 1.5mm
Material thickness: 0.3-0.7mm
Production speed: 7-9m/min
Layout size: 8600*1000*1750mm
Machine weight: 4980kg
Max. Length – 3,000mm

Finished products:
