25T high speed punching press

Machine characteristic:
1. Higher capacity to produce the mesh
2. Easy operation, save the labor cost and maintain cost.

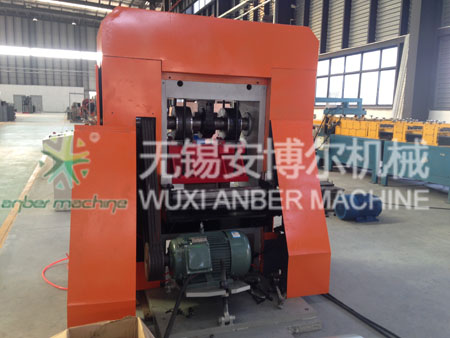

High speed punching press

High speed punching press

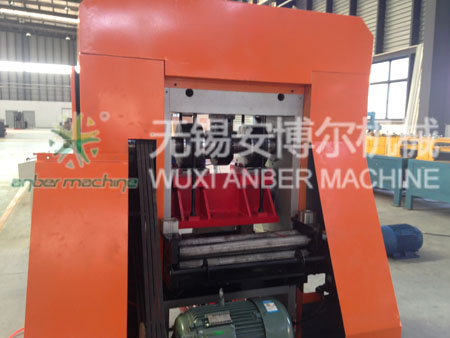

Punching machine

Punching machine

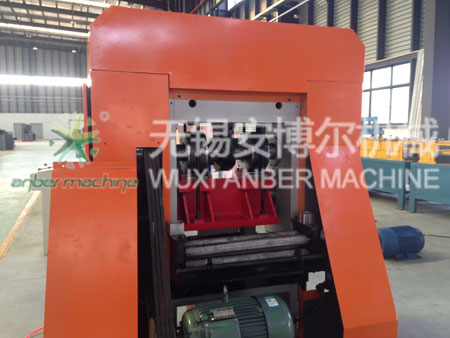

High speed punching machine

High speed punching machine

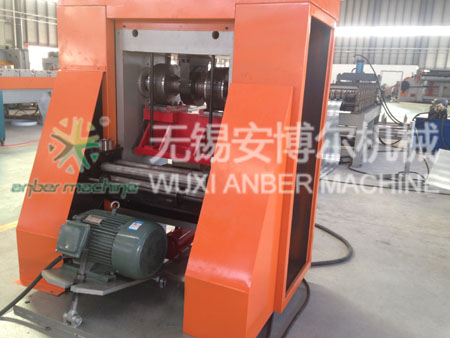

25T high speed punching press

25T high speed punching press



Machine application:
This high speed punching press can be used to produce hi-rib lath, rib lath, etc which the raw material is small. The machine can produce with width less than 700mm 0.3-1.2mm thickness cold rolled steel.
Main parameters :
SN
Item
Unit
Technical
1
Model
ABE-GS-25/700
2
Pressure
KN
250
3
Material thickness
mm
MAX. 1.2MM GI
4
Mesh width
mm
700
5
Punching speed
strokes/min
500
6
Slide stroke
mm
20
7
Max. Die height
mm
200
8
Die height adjustment
mm
Max. 50MM
9
Working table size
mm
500700
10
Motor
Power
KW
15-22
Rotate speed
R/min
1440
11
Overall size (LWH)
mm
130013001900
12
Total weight
kg
1700
13
Remark
Above parameter can be designed according to customers requirement
