Standard metal mesh machine ABE-4-1300

Description:
The expanded metal mesh machine is used produce the expanded metal mesh, also is called expanded metal lath, can be used in construction, hardware, door and windows and lathes. Some products with surfacing processed can be widly used in decoration of the building or house. The machine is in high speed with satisfied expanded mesh. The shearing force of the expander is related to the thickness of the materials as well as the LWD. Considering the same thickness of the raw materials, the shearing force will increase with the decreased LWD.

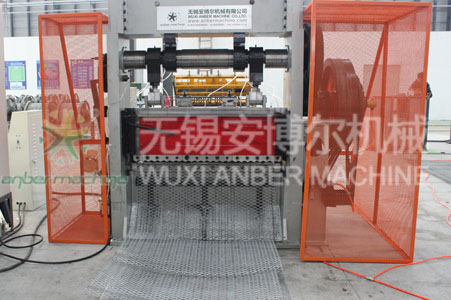

  • mesh out of the expanded metal mesh machine

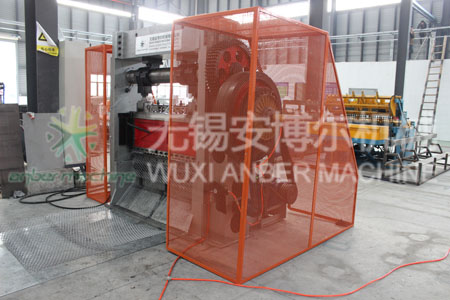

  • Mesh out part of the metal expander

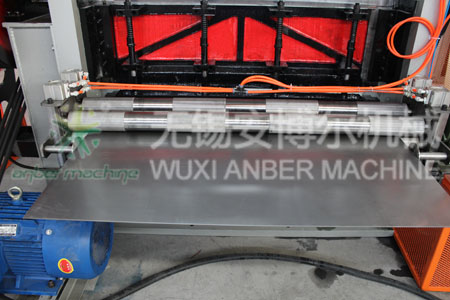

  • Steel plate feed-in Side of the metal expander

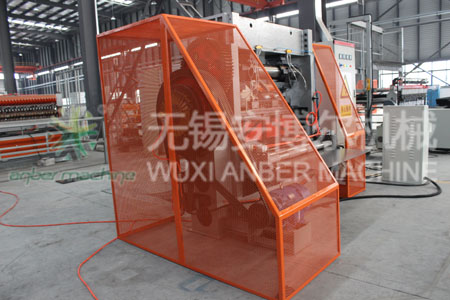

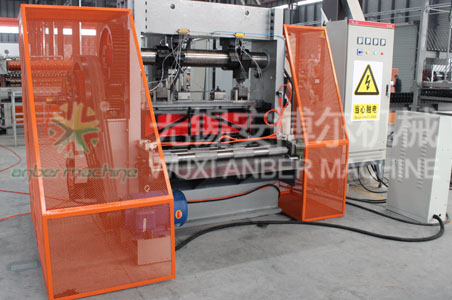

  • Standard metal mesh machine

Main technical parameters:
Application: Ventilation Screens, Medium Filters, Fireplace Screens, Acoustic Ceilings
Model: ABE-4-1300
Range of the thickness: 0.5-4mm
Cutting width: 1300mm
Punching force: 125T
SWD: 6-60mm
LWD: 10-80mm
Working speed: 85 strokes per minute
Feeding distance: 0.5-5mm
Motor power: 15kw
Net weight: 5T
Overall size: 2500mm*1800mm*2400mm
