16T High speed punching press

Machine characteristic:
1. Higher capacity to produce the mesh
2. Easy operation, save the labor cost and maintain cost.

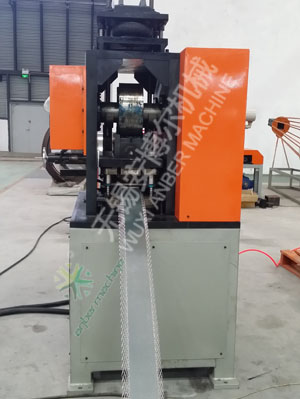

16T high speed punching press

16T high speed punching press

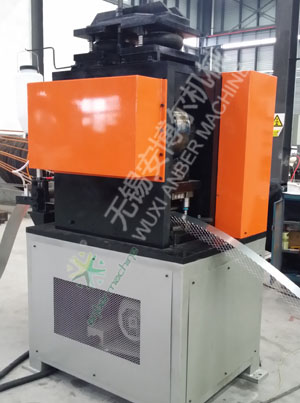

High speed angle bead machine

High speed angle bead machine

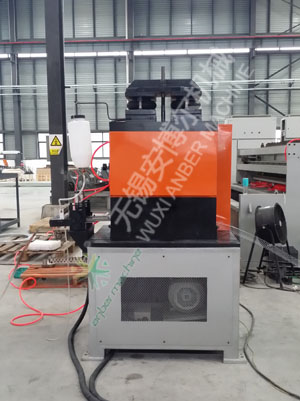

High speed architrave bead machine

High speed architrave bead machine

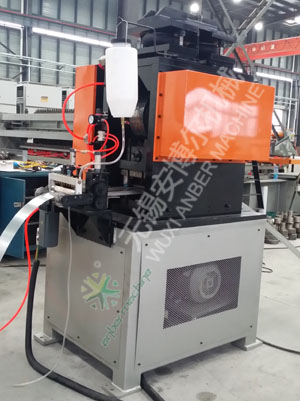

High speed expanded metal mesh machine

High speed expanded metal mesh machine

High speed punching press

High speed punching press








Machine application:
This high speed punching press can be used to produce angle bead, plaster stop bead, movement bead, architrave bead, etc which the raw material is small. The material width can use 300mm 0.3-1.2mm thickness cold rolled steel.
Main parameters :
SN
Item
Unit
Technical
1
Model
ABE-GS-16/300
2
Pressure
KN
160
3
Material thickness
mm
MAX. 1.2MM GI
4
Mesh width
mm
300
5
Punching speed
strokes/min
500
6
Slide stroke
mm
25
7
Max. Die height
mm
200
8
Die height adjustment
mm
Max. 50
9
Working table size
mm
600320
10
Motor
Power
KW
5.5
Rotate speed
R/min
970
11
Overall size (LWH)
mm
140012001900
12
Total weight
kg
1350
13
Remark
Above parameter can be designed according to customers requirement
