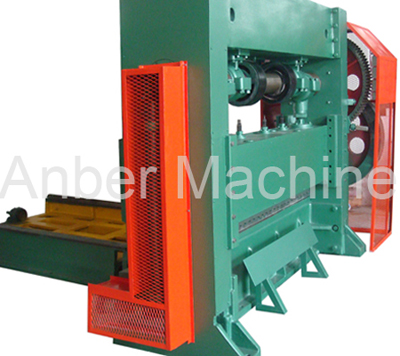

Expanded metal mesh machine ABE-2.5-2000

The fence mesh machine is used produce the expanded metal mesh for fence, the fence is usually applied in construction, hardware, door, windows, safety fence, highway guardrail and lathes. This kind of fence mesh usually need surface treated to used as door and the highway guardrail, etc. The machine is in high speed with satisfied expanded mesh. The shearing force of the expander is related to the thickness of the materials as well as the LWD. Considering the same thickness of the raw materials, the shearing force will increase with the decreased LWD.

Model: ABE-2.5-2000
Cutting width: 2000mm
Range of the thickness: 0.5-2.5mm
Punching force: 63T
LWD: 100mm
SWD: 5- 20mm
Working speed: 70 strokes per minute
Feeding distance: 0-6mm
Motor power: 11kw
Net weight: 10T
Overall size: 3500mm*2400mm*2300mm




All the model listed in the below, please click for detail:
