1250mm High speed punching press

General description:
ANBER high speed expanded mesh machine, it is high speed and CE certificated.

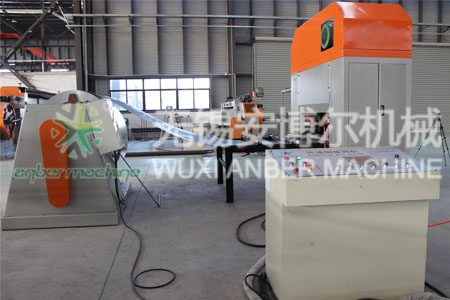

Expanded metal mesh machine

Expanded metal mesh machine

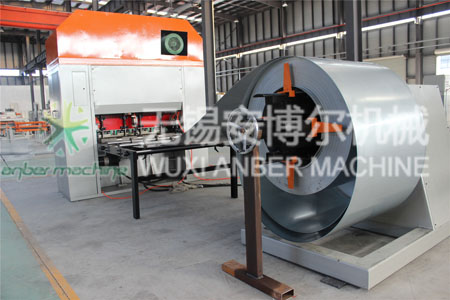

1250mm High speed expanded mesh machine

1250mm High speed expanded mesh machine

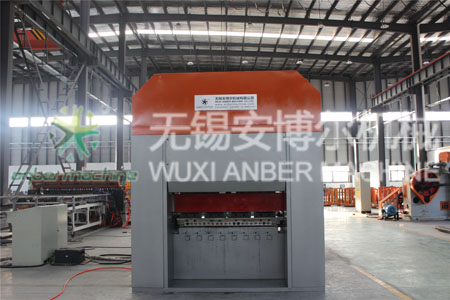

High speed expanded metal mesh machine

High speed expanded metal mesh machine

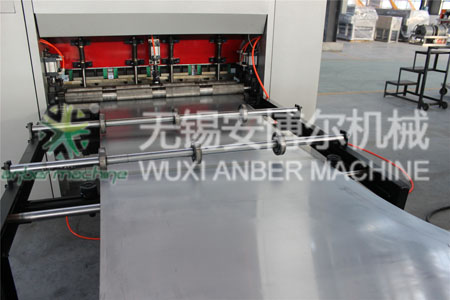

High speed metal expander

High speed metal expander

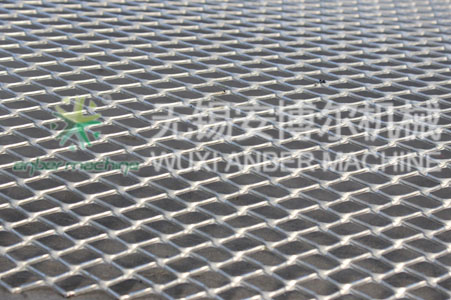

Expanded metal mesh

Expanded metal mesh


Detailed description:
Expend mesh machine is a kind of building product use hot rolled board punching forming. It has the characteristic of light weight, high strength. It main use for the protective equipment of building products, road or railway
Application: Industry and civil architecture, road, railway.
Advantage of the application:
1. More faster construction speed, less insurance expenses and labor.
2. To improve the project¡¯s quality reduce the labor intensity of install the expanded mesh, the protective screening of the road and railway.
The product¡¯s application and the requests of the material: The expanded mesh produced by this production line is mainly used for constructional engineering. Please choose cold rolled plate with the thickness of 0.5-2mm, the width 1250mm.
The composition and effect of the equipment:
Punching equipment include punching machine, step feeding mechanisms and tools. Step feeding mechanisms sending the sheet material to the punching machine with a certain beat and specific length; press machine and tools use for making the hot rolled sheet punch to mesh sheet.
Main parameters :
SN
Item
Unit
Technical
1
Model
ABE-GS-60/1250
2
Pressure
KN
600
3
Material thickness
mm
2-4mm, according to the mesh opening
4
Mesh width
mm
£¨¡Ü1250£©
5
Punching speed
strokes/min
500
6
Slide stroke
mm
40
7
Max. Die height
mm
90
8
Die height adjustment
mm
10
9
Working table size
mm
1300¡Á1500
10
Motor
Power
KW
22
Rotate speed
R/min
1440
11
Overall size (L¡ÁW¡ÁH)
mm
2600¡Á2500¡Á2800
12
Total weight
kg
8187
13
Remark
Above parameter can be designed according to customer¡¯s requirement
