Metal lath and Brickwork mesh machine

Description:
Self furring lath production line is used to produce the self furring lath which is applied to plaster and reinforcing the wall, the production line contains de-coiler, expanded main machine, roller profiling machine with hydraulic shearer and collecting table.

•

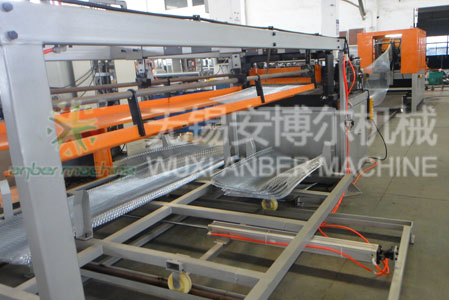

  Self furred metal lath production line

•

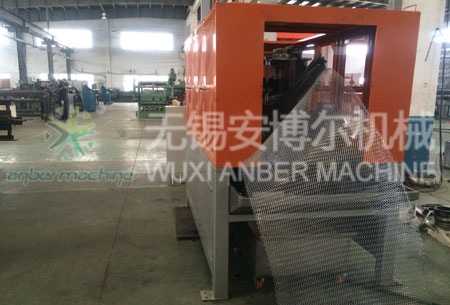

  Roll shearingexp anding

•

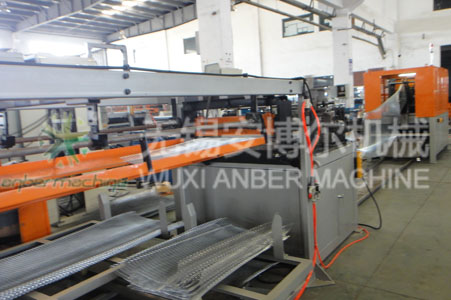

  Straightening and slitting machine

•

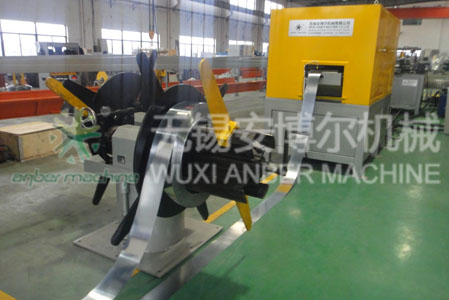

  Stacker

•

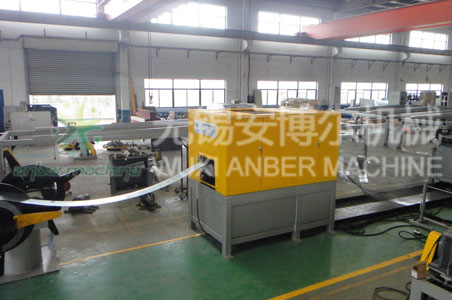

  Double head re-winder

•

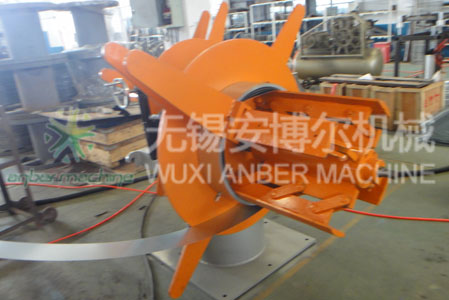

  Decoiler

•
•
•
•
•
•

Technical parameters:
ANBER metal lath and brickwork mesh machine can produce metal lath and brickwork reinforcement mesh on one production line by change molds.

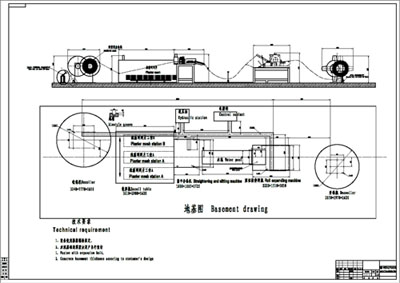

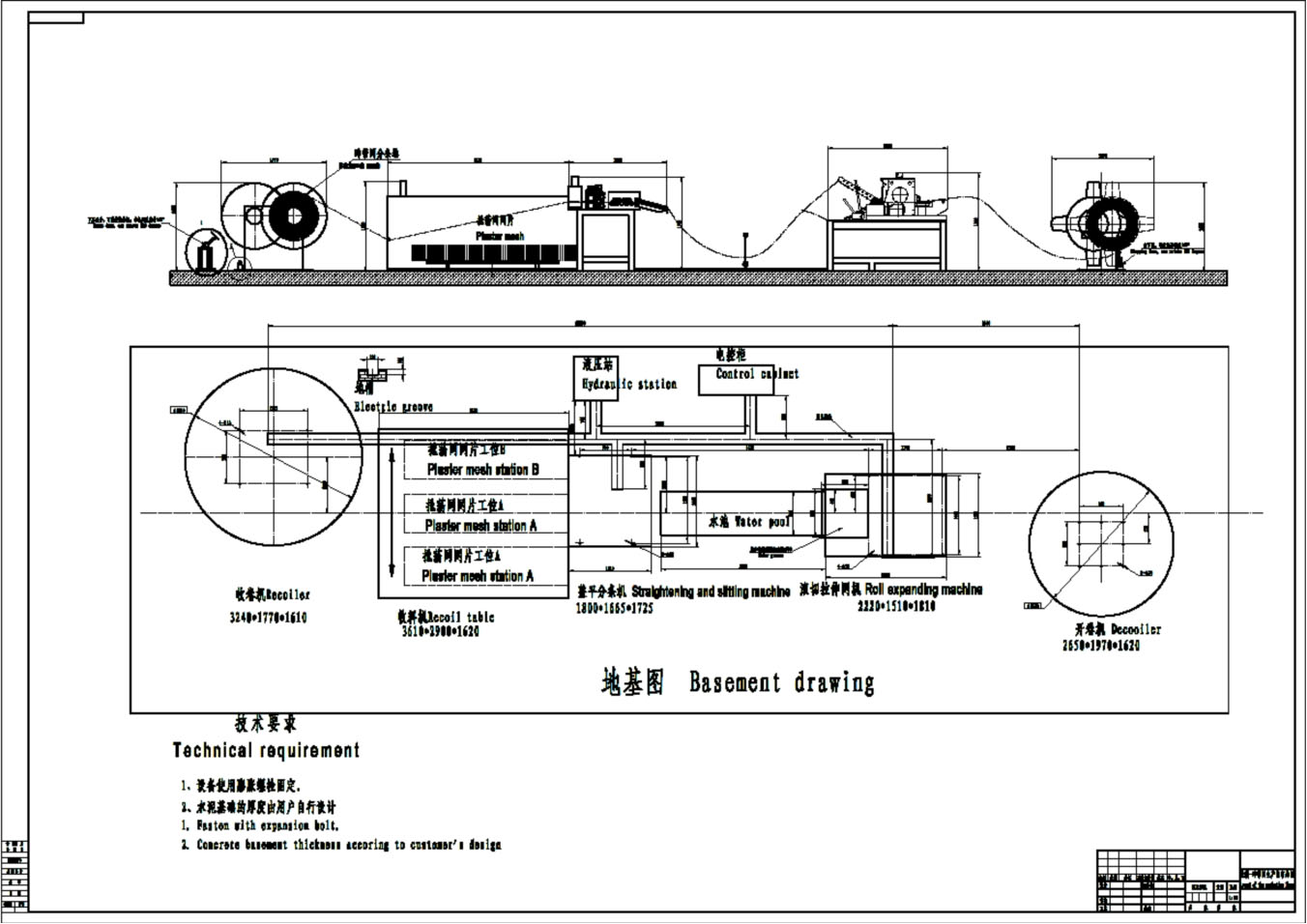

layout:

General information:

Machine name/Brief Description	Diamond mesh machine
Rolling Speed	12mpm
NO. of operators	Two
Approx. weight (Total weight)	4 tons
Total power requirement	12kw
Compressed air requirement (cft/min.)	0.5M3
Machine Guard	yes
Machine Mechanism	Rotary
Line direction	Left to right

Decoiler:

Item	Name	Parameter
1	Inner diameter	500mm, adjustable
2	Outer diameter	1000mm
3	Loading weight	Loading weight of each side is 1t
4	Machine size	2650x1970x1620mm
5	Weight	1260Kg
6	Two sides	Each rotation 180°

Roll shearing/expanding:

Item	Name	Parameter
1	Outer diameter of cutter	Φ263mm
2	Blade repaired capacity	3 mm
3	Speed or roll and cutting	12m/min
4	Motor	Power:4kw, Voltage: 380V, Rotation speed: 1450r/min
5	Machine size	2220x1510x1810mm
6	Weight	2352Kg

Straightening and slitting machine:

Item	Name	Parameter
1	Diameter of roll	63mm
2	Straightening roller QTY	13 straightening rollers
3	Motor	Power:3kW,Voltage：380V
4	Reduce speed machine	JZQ200—i=20.54
5	Size of machine	1800x1665x1725mm
6	Weight	1554Kg

Stacker:

Item	Name	Parameter
1	Product size	700x3000mm
2	Loading weight	1t
3	Loading height	500mm
4	Size of machine	3610*2900*1620
5	Weight	586Kg

Double head re-winder:

Item	Name	Parameter
1	Inner diameter	120mm
2	Outer diameter	800mm
3	Loading weight	300Kg
4	Motor	Power: 1.5kw, voltage: 380V, 2 sets
5	Machine size	3240x1770x1610mm
6	Weight	1420Kg
