Expanded metal mesh machine ABE-1.5-1250

Description:
The expanded metal mesh machine is used produce the expanded metal mesh, also is called expaned metal lath, can be used in construction, hardware, door and windows and lathes. Some products with surfacing processed can be wildly used in decoration of the building or house. The machine is in high speed with satisfied expanded mesh. The shearing force of the expander is related to the thickness of the materials as well as the LWD. Considering the same thickness of the raw materials, the shearing force will increase with the decreased LWD.

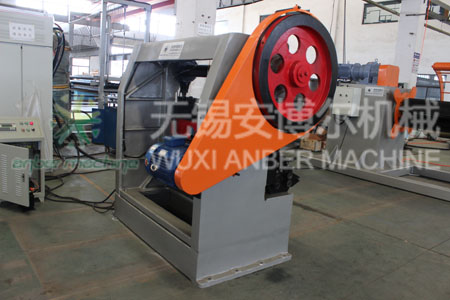

  • Mesh out of the expanded metal mesh machine

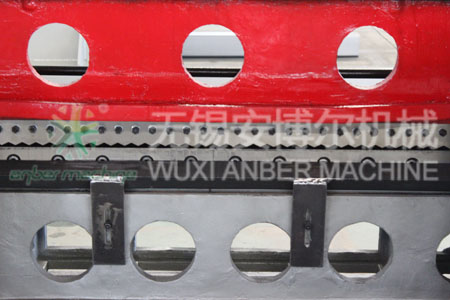

  • Mesh out part of the metal expander

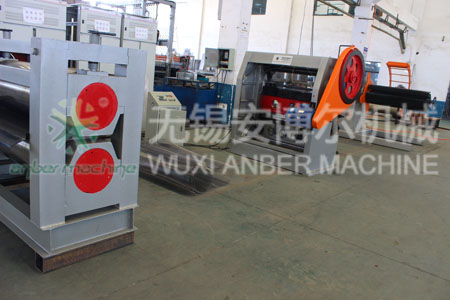

  • Steel plate feed-in Side of the metal expander

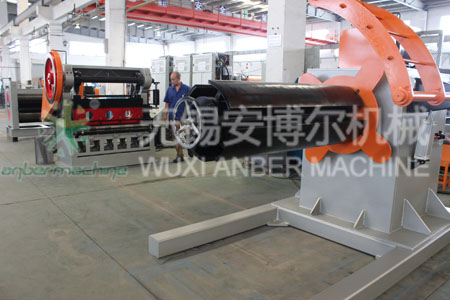

  • De-coiler

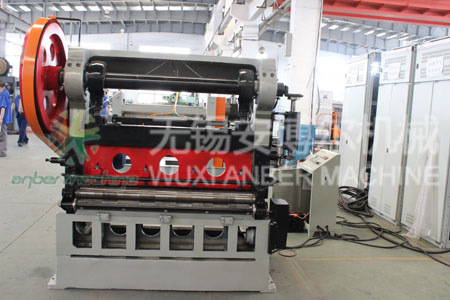

  • Standard metal mesh machine

Main technical parameters:
Model: ABE-1.5-1250
Raw material: steel plate, titanium steel plate, copper plate
Range of the thickness: max. 1.5mm
Cutting width: 1250mm
SWD: 5-20mm
LWD: 8-30mm
Working speed: 150 strokes per minute
Feeding distance: 0-2mm
Motor power: 5.5kw
Net weight: 3T
Overall size: 1940mm*1600mm*2010mm
Application: Grids for phono and car industries
Speaker Grids
Micro and small filters
Catalytic Converters


All the model listed in the below, please click for detail:
