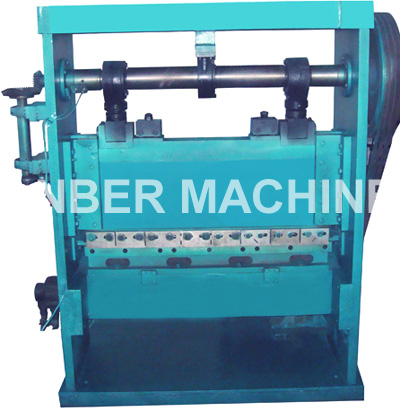

Expanded metal mesh machine ABE-120-1000

The expanded metal mesh machine is used produce the expanded metal mesh, also is called expaned metal lath, can be used in construction, hardware, door and windows and lathes. Some products with surfacing processed can be wildly used in decoration of the building or house.
The machine is in high speed with satisfied expanded mesh. The shearing force of the expander is related to the thickness of the materials as well as the LWD. Considering the same thickness of the raw materials, the shearing force will increase with the decreased LWD.

Model: ABE-120-1000
Raw material: steel plate, titanium steel plate
Range of the thickness: max. 4mm
Cutting width: 1000mm
LWD: max .70mm
SWD: max. 40mm
Punching force: 100T
Working speed: 120 strokes per minute
Feeding distance: 0.3-5mm
Motor power: 11kw
Net weight: 3.5T
Overall size: 1800mm*1100mm*1500mm
Application: Micro Batteries
                   Micro Filters
                   Shielding & Electronic
                   Micro Screens

All the model listed in the below, please click for detail:

ABE-8-2000	ABE-6-2500	ABE-4-2000	ABE-4-1300
ABE-2.5-2000	ABE-2-1500	ABE-1.5-1250	ABE-1.0-1000
ABE-600
