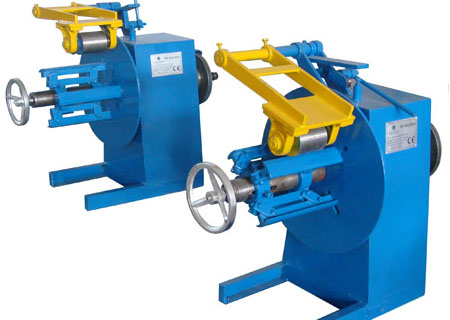

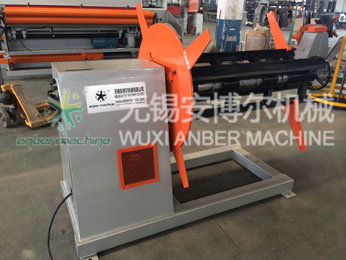

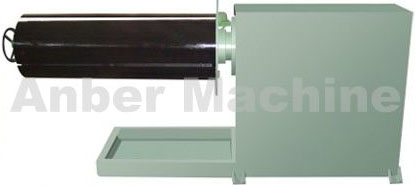

The uncoiler is the accessory machine for the expanded metal mesh machine, it is used for opening the rolling sheet irons which is fed into the expanded metal mesh machine. The uncoiler is also called de-coiler, unwider. We can supply these kinds of de-coiler machine, such as heavy duty uncoiler, double stock reel uncoiler, stocker reel, 150kg decoiler, 500kg decoiler,1000kg decoiler, 2000 kg decoiler, etc.
The following is the technical parameter of the decoiler:
Width: 200-600mm
Mtarial thickness: 0-3mm, or can be designed according to customer's requirement
Speed reducer: 1/60
Machine motor: 1 HP
Interior dia.: 300-530mm, or can be designed according to customer's requirement
Exterior diameter: 1200mm
Max. Material weight: 500-2000kg, or can be designed according to customer's requirement
Decoiler options:
* DC Controlled Gear Motor
* Jog Control
* Dancer Arm Loop Control
* Air Brake
* Hydraulic Expansion
* Ultrasonic Loop Contol
* Hydraulic Rotation
* Keeper Arms (Set of 3)
* Back Plate (48" Std.)
* Air Clutch
* Pneumatic Hold Down Arm
|
 |

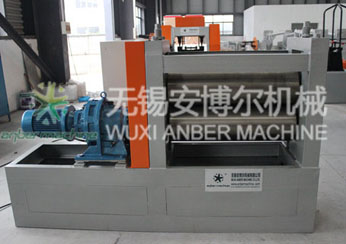

Metal Flattening Machine is the accessory machine for expanded metal mesh machine. The flattened expanded metal has nice outlook and smooth appearance, with higher value. We can supply all kinds of flatten machine, such as four-roller flatten machine, two-roller flatten machine, manual flatten machine, hydraulic flatten machine, etc. Currently the machine is applied to processing expanded metal with a maximum sheet thickness of 4mm and a length between 0.5m to 2.5m.
Main Parameter:
Working width: 1.2m, or at customer's requirement
Press roller: 270mm, or at customer's requirement
Driving motor: 7.5Hp
Power: 380/220V*50/60Hz
Type: ABE-YP1200
size: 2.75m*1.30m*1.20m
Weight: 2800kg |
